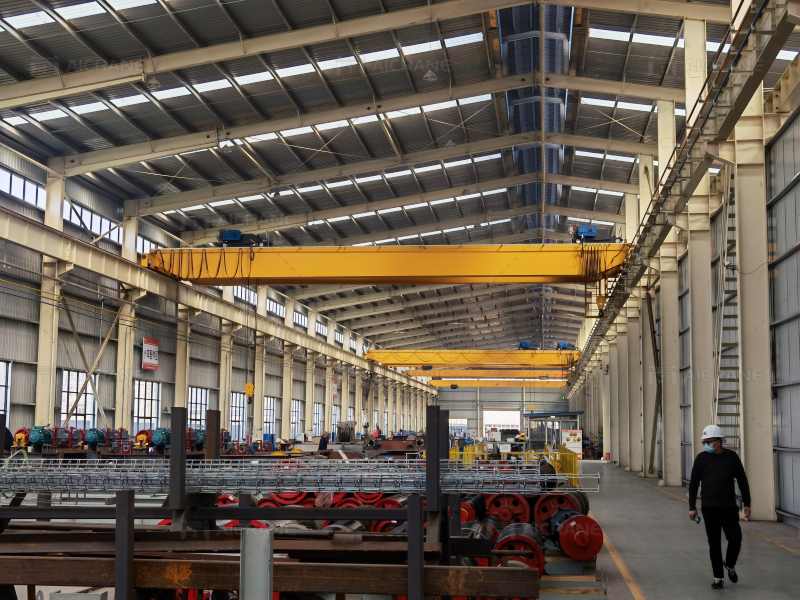

Efficient material handling is the backbone of any successful warehouse operation. To optimize productivity and safety, many warehouses rely on overhead cranes to lift and transport heavy loads seamlessly. If you’re considering installing a warehouse overhead crane, there are essential steps, considerations, and best practices to ensure a successful setup.
This guide covers everything you need to know about setting up a warehouse overhead crane—from planning and design to installation and safety.
Why Install a Warehouse Overhead Crane?
Before diving into the setup process, it’s essential to understand the benefits of overhead cranes in warehouse environments:
- Increased Efficiency: Overhead cranes streamline material handling by enabling quick, precise movement of heavy loads.
- Optimized Floor Space: By operating above ground, overhead cranes free up valuable floor space for other activities.
- Enhanced Safety: They reduce the need for forklifts or manual lifting, minimizing the risk of accidents.
- Reduced Labor Costs: Automating lifting tasks allows employees to focus on higher-value work.
Key Considerations for Setting Up a Warehouse Overhead Crane
1. Assess Your Warehouse Needs
Before selecting a crane, assess your warehouse’s specific requirements:
- Load Capacity: What is the maximum weight you need the crane to lift? Overhead cranes can handle a range of capacities—from 1 ton to over 100 tons.
- Span and Lifting Height: Measure the width of the area the crane needs to cover (span) and the maximum height to which you need to lift loads.
- Frequency of Use: How often will the crane be in operation? This impacts the type of crane you need and the duty cycle (light, medium, heavy, or severe).
- Type of Loads: Consider the materials or products you’ll be handling, as this influences the type of hoist and lifting attachments required.
2. Choose the Right Crane Type
Several types of overhead cranes are suitable for warehouses:

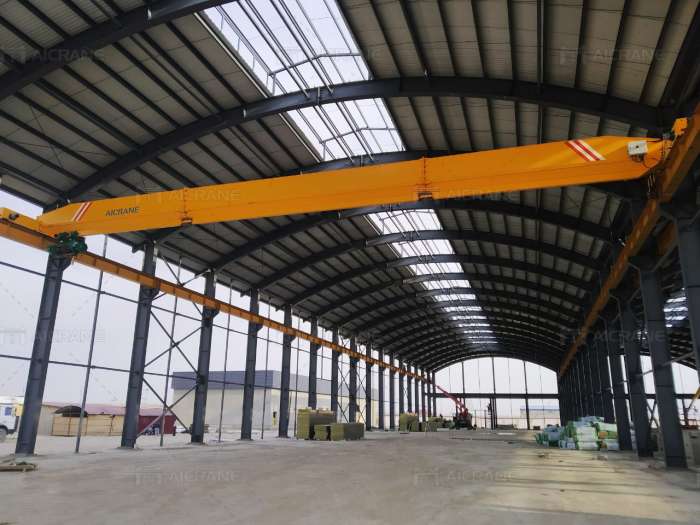

- Single-Girder Overhead Crane: Ideal for lighter loads (up to 20 tons) and lower headroom. They are cost-effective and easier to install.
- Double-Girder Overhead Crane: Suitable for heavy-duty applications (over 20 tons). Double bridge cranes offer greater lifting height and stability.
- Top-Running Crane: Runs on rails mounted above the beams. Best for heavy loads and large spans.
- Under-Running Crane: Suspended from the building’s roof structure. Ideal for smaller warehouses with lighter loads.
3. Plan the Installation Layout
Proper planning of the installation layout is crucial for maximizing efficiency and safety:
- Crane Coverage: Ensure the crane’s span covers the entire operational area where lifting is required.
- Clearances: Allow sufficient headroom and side clearances to avoid obstructions.
- Runway Beams and Supports: Ensure the building structure can support the crane’s weight and load. In some cases, additional reinforcements or freestanding structures may be necessary.
4. Compliance with Safety Standards
Installing a warehouse overhead crane must comply with industry regulations and safety standards:
- OSHA (Occupational Safety and Health Administration): In the U.S., OSHA sets standards for crane safety and operation.
- ANSI/ASME: These organizations provide guidelines for crane design, operation, and maintenance.
- ISO Standards: International standards ensure that cranes meet global safety and quality benchmarks.
Ensure your crane is compliant with these standards to minimize safety risks and legal liabilities.
Steps to Setting Up a Warehouse Overhead Crane
1. Design and Engineering
Work with a qualified supplier or engineer to design the crane system based on your warehouse’s specifications. The design phase includes:
- Load Calculations
- Structural Assessments
- Crane Component Selection (hoists, trolleys, controls)
Companies like Aicrane and QCL provide comprehensive design and consultation services to help ensure the crane meets your needs.
2. Infrastructure Preparation
Prepare the warehouse for installation:
- Runway Installation: Install the rails or beams that the crane will travel on. Ensure they are level and aligned.
- Support Structures: Reinforce the building structure if necessary or set up freestanding supports.
- Electrical Wiring: Ensure adequate power supply for the crane’s electrical components.
3. Crane Assembly and Installation
The actual installation process involves assembling and mounting the crane system. This typically includes:
- Installing the Bridge and Girders: Lift and secure the bridge girders onto the runway beams.
- Mounting the Hoist and Trolley: Attach the hoist and trolley system, ensuring they move smoothly along the bridge.
- Connecting Electrical Components: Wire the control system, motors, and safety devices.
Professional installation teams ensure everything is securely mounted and aligned.
4. Testing and Inspection
Before the crane is operational, thorough testing is necessary:
- Load Testing: Perform load tests to verify the crane’s lifting capacity and stability.
- Safety Inspections: Check all safety features, including emergency stops, limit switches, and overload protection systems.
- Operational Tests: Test the crane’s movements, controls, and braking systems.
5. Operator Training
Ensure your staff is trained on proper crane operation and safety procedures. Training should cover:
- Basic Controls
- Load Handling
- Safety Protocols
- Emergency Procedures
Maintenance and Long-Term Care
Regular maintenance is essential to keep your warehouse overhead crane operating efficiently:
- Routine Inspections: Check for wear and tear, loose bolts, or misalignments.
- Lubrication: Keep all moving parts well-lubricated to prevent friction and wear.
- Electrical Checks: Inspect wiring and controls for any damage or faults.
Partnering with an bridge crane supplier who offers after-sales support and maintenance services can help extend the crane’s lifespan.
Conclusion
Setting up a warehouse overhead crane is a strategic move that enhances productivity, safety, and space optimization. By carefully assessing your needs, choosing the right crane type, and ensuring a safe, compliant installation, you can streamline your warehouse operations and achieve long-term efficiency. Reliable suppliers like Aicrane and QCL can provide tailored solutions and ongoing support to help you get the most out of your investment.
